Sump Pump Float Switch Problems

The float switch tells your sump pump when to turn on and off based on water level, and it’s one of the most common points of failure. Typical problems include the float getting stuck against the pit wall, its cord or arm tangling, debris interfering with movement, or the switch mechanism wearing out and failing to trigger at all. Most of these are easy to diagnose and fix without replacing the whole pump.

Types of Float Switches

Sump pumps generally use one of three float switch designs, and knowing which type you have affects how you troubleshoot it:

• Tethered float switch — a float on a cord that rises and falls with water level; prone to tangling if the pit is narrow.
• Vertical (rigid arm) float switch — moves up and down along a fixed rod, less prone to tangling but can still stick.
• Electronic/diaphragm switch — senses pressure changes rather than physical float movement, with no moving float to jam, but it can still fail electronically.

Common Float Switch Problems

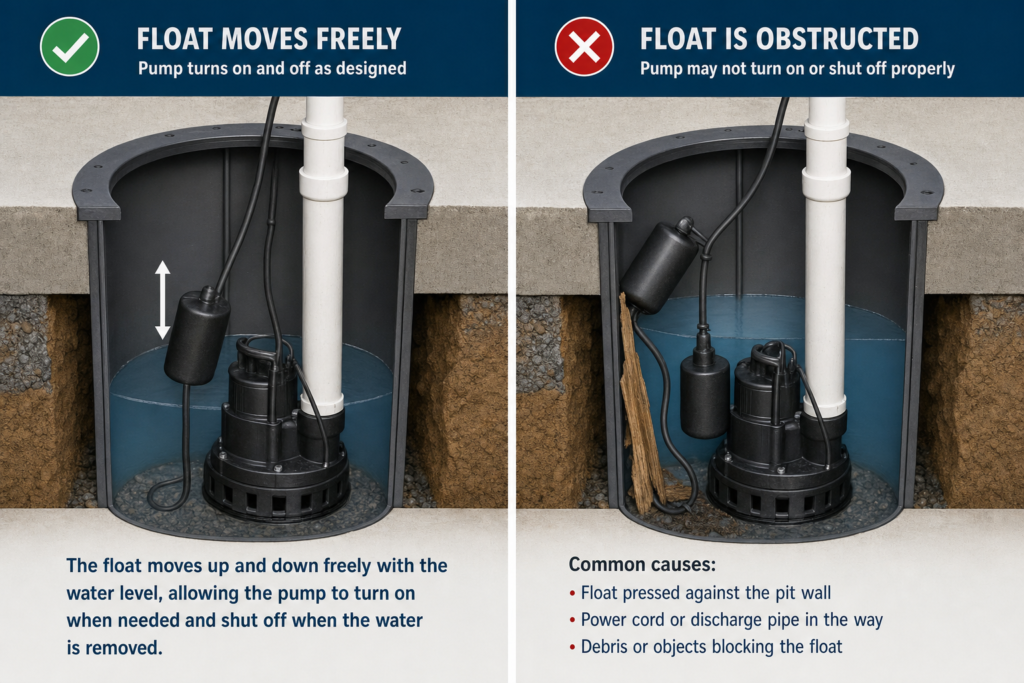

Switch Is Tangled or Obstructed

In narrow or crowded pits, a tethered float can catch on the pump, the discharge pipe, or the pit wall, preventing it from rising or falling freely. Reposition the pump and float so the cord has clear range of motion, keeping in mind that even a slight lean of the pump can throw off the float’s swing radius.

Switch Is Stuck in One Position

Debris, sediment, or a misaligned rod can hold the float in the “up” or “down” position. A float stuck up causes the pump to run constantly (see Sump Pump Runs Constantly); a float stuck down means the pump never activates, contributing to a no-run situation (see Sump Pump Not Working).

Switch Has Failed Internally

Over time, the internal mechanism or electrical contacts inside the switch can wear out or corrode, especially in switches that cycle frequently. If the float moves freely but the pump still doesn’t respond, the switch itself—not its positioning—is likely the problem.

Switch Is Miscalibrated

On adjustable switches, the trigger height can be set too high or too low, causing the pump to activate later or earlier than intended. This isn’t usually a failure, just a setting that needs adjusting to match the pit depth and desired water level.

How to Test the Float Switch

1. Unplug the pump before handling any components in the pit.
2. Manually lift the float (or trigger the switch mechanism) and plug the pump back in to see if it activates.
3. If it activates on manual lift but not from rising water, the issue is positioning or obstruction, not the switch itself.
4. If it doesn’t activate even on manual lift, the switch has likely failed and needs replacement.

Repairing or Replacing the Switch

Many float switches can be replaced independently of the pump itself, provided the model supports a swappable switch. If the switch is integrated into the pump housing, or continues to fail after replacement, the issue may point to a broader pump problem. General repair steps are covered in Sump Pump Repair, and if the pump is older or has multiple issues, see Sump Pump Replacement.

For the full range of sump pump issues and how they connect, see the Sump Pump Problems Guide.

Safety note: Keep hands and tools away from an energized sump pit. Disconnect power before touching the pump, float, check valve, piping connections, or other components. Do not work on electrical equipment in or near standing water.
